• Product Description
    Company Info.
    <
    >
    <
    >
    Basic Info.
    Types:
    Wire rolling machine
    Model:
    M8-M25,M12-M35
    Degree of automation:
    Automatic
    Inventory or not:
    Yes
    Main motor power:
    1.5 kw
    Spindle speed range:
    350-600 rpm
    Maximum spindle stroke:
    infinitely long mm
    Working precision:
    +-0.02
    Principal deflection angle:
    +-3 度
    Pitch range of rolling screw:
    0.5-2.5 mm
    Power type:
    Hydraulic pressure
    Layout form:
    Horizontal type
    Product Description

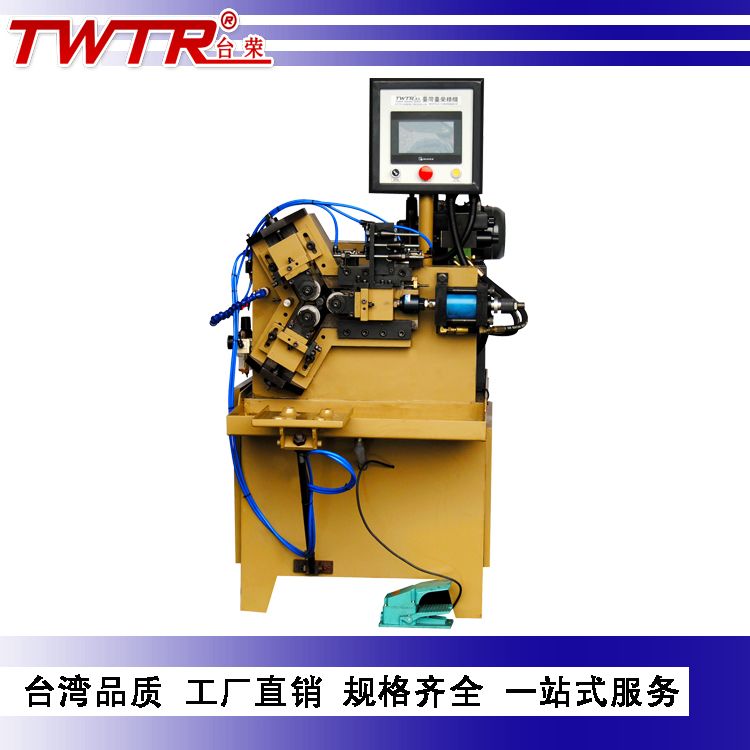

    M25-35#three-axis hydraulic thread rolling machine

    Three-axis hydraulic hobbing machine 35#
    1. Equipment overview
    A. Applicable This equipment is suitable for metal pipe rolling, rolling texture, rolling straight flower, knurling, knurling cross flower, rolling rib, rolling groove, rolling off, rolling ball surface, hobbing, straightening
    B Mechanical structure Vertical 3-axis two-axis fixed (adjustable in size within the range) one side with cylinder to advance or retreat Taiwan brand tooth rolling machine technology
    2. Modus operandi One end of the pipe to be rolled is inserted into the middle of the three rollers, and the corresponding thread is processed through the extrusion of the workpiece by the roller cone. It is specially designed for pipe rolling workpieces. The concentricity, roundness and verticality of the workpiece can be ensured by the equal triangle support principle. The hydraulic electric drive is simple and stable.
    3. Equipment capacity
    A. Form of rolling teeth Single roll or continuous work
    B. Rolling screw diameter range Pipe Φ 9-Φ 25mm
    C. Pitch range 0.5-2.5mm
    D. Rolling screw length Fixed 50mm, roll-through (unlimited length) dual use
    E. Roller speed 350r/min
    F. Roller cone OD Ф78(Ф90mm)
    G. Inner diameter of roller cone (key groove) Ф25.4(6×3)
    H. Roller thickness 45mm
    I. Distance between roller shafts 55-90mm
    J. Tooth rolling amount 4-25pcs/min
    K. Roller shaft inclination ±3°
    L. Main engine motor 3HP 8N  (2.2KW)
    M. Hydraulic motor 1HP(0.75KW)
    N. feed pressure 6TONS
    O. Weight 500KG
    P. Mechanical volume 1180*1000*1500
    5. Installation and commissioning The supplier shall be responsible for installation, commissioning and operation after the equipment arrives, and shall also be responsible for guiding the use, maintenance and repair of the equipment (limited to domestic customers only, and discussed separately overseas).
    6. Guarantees In case of problems or defects caused by design and manufacturing materials within one year of equipment use, the supplier shall be responsible for maintenance and replacement of relevant spare parts, excluding problems caused by improper use. The warranty period for electrical parts shall be five months, and the wearing parts of molds shall not be included in the warranty scope (see formal contract for details of warranty regulations).
    7. Accessories A set of random tools
    8. Feeding Excluding the feeding rack and receiving rack, if the automatic feeding vibration plate is less than 400mm, an additional 8000 yuan will be added.
    die Including a set of cone, used in this machine
    Product Description:
    1. Features: high speed, high efficiency and durability;
    2. The oil tank can be internal or external, saving space and easy to clean;
    3. Simple operation, easy to adjust the center plate corresponding to the roller cone;
    4. Widely used, suitable for rolling threads in various industries.
